Sheetfed Offset/Screen Printing/Varnish Coating Led Machine Uva Fast Drying Light Unit UV Curing UV Curing Lamp Dryer For Screen Varnish Offset Printing Digital Printer Paint

1 set
MOQ
Sheetfed Offset/Screen Printing/Varnish Coating Led Machine Uva Fast Drying Light Unit UV Curing UV Curing Lamp Dryer For Screen Varnish Offset Printing Digital Printer Paint
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Applicable Industries: Manufacturing Plant, Printing Shops, Advertising Company
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: Ordinary Product
Warranty of core components: 2 years
Core Components: LED UV Module
Condition: New
Type: UV LED curing
Automatic Grade: Automatic
Voltage: 220V/380V
Dimension(L*W*H): design according requirement
Weight: 60KG
Warranty: 1 Year, 1 Year
Key Selling Points: Energy saving
Product name: Water cooling LED UV curing system
Application: sheetfed offset/screen printing/Varnish coating
Wavelength: 385nm/395nm, 365nm+395nm mix wavelength
LED chips: LG Uv Led
Package Type: COB
Cooling Method: Water cooling
Irradiance: 23W/cm2 at 395nm
Input Voltage: AC220V/380V
Service time: 20000HRS
After Warranty Service: Online support
Local Service Location: None
After-sales Service Provided: Online support
Certificación: CE
Información básica
Certificación: CE
Pago y Envío Términos
Packaging Details: Wood Carton
Supply Ability: 100 Set/Sets per Month
Descripción de producto


-Type High power LED UV Curing
Electric Power 3.1KW
Cooling method water cooling
UV Power 23W/CM2@395nm
Wavelength 365/385/395/405nm
Light area 520*22MM
Control mode Manual/Auto
Communication RS485
Error Warning Overheat,Over Current LED Open, Short
High UV power
With COB( chip on board) design, we can get  light intensity 30W/CM2

With good heat dissipation of module design and light head structure design, we can keep the system working stable.

Advanced Controller And Control System
1.  10-100% Auto power regulation
2.  Full modulized design for quick maintaining
3.  RS485 communication provided,easy to integrated with other intelligent system
Customized HMI
We can write customized HMI for customer to meet different demands.



Q1. What''s the whole UV LED curing system including?

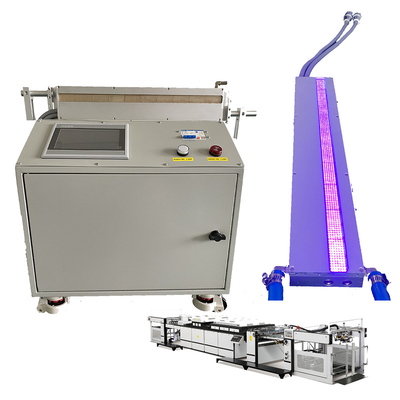

A: The whole UV LED curing system including UV LED lamp+ UV LED driver+ electric cabinet and control system+water chiller
Q2. Can I buy water chiller in my local market?
A: Yes, I will suggest you the chiller capacity after confirm which model you want.
Q3. Can I use my own PLC and Electric cabinet?
A: Yes, of coures. Our UV LED driver provide RS485 communication.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on UV LED curing system?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee and installation service for the products?
A: Yes, we offer 20000HRS service and 1 year free warranty. The installation service can provided but should be payed according different country and different system.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less

than 0.2%.

Secondly, during the guarantee period, we will send new parts with new order for small quantity. For

defective batch products, we will repair them and resend them to you or we can discuss the solution i

ncluding re-call according to real situation.
