High Efficiency Low Cost Industrial Drying Machine Fruit Dryer Garlic Drying Equipment For Food

1.0 Sets
MOQ
High Efficiency Low Cost Industrial Drying Machine Fruit Dryer Garlic Drying Equipment For Food
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Type: Drying Oven
Application: Food Processing
Condition: New
Voltage: 220V/380V, 3Phase/220v/380v/50Hz
Power: 15kw
Dimension(L*W*H): 2300*1200*2000
Key Selling Points: Automatic
Warranty: 1 Year
Applicable Industries: Hotels, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Other
Heating Method: Electric Heating
Material: SUS304, 304 Stainless Steel
Name: Industrial Drying Machine for food
Product name: Hot Air Drying Machine
Keywords: Drying Oven Machine
Heating source: Electricity Steam gas etc
Usage: Industrial Usage
Feature: High Efficiency Low Cost
Advantage: Low Consumption High Efficiency
Color: Silver
After-sales Service Provided: Online support
After Warranty Service: Video technical support
Local Service Location: None
Información básica
Pago y Envío Términos
Packaging Details: we use wooden box to load meat dryer,fruit drying machine . fish dryer
Supply Ability: 3000 Set/Sets per Day fruit dryer
Descripción de producto
Products Description

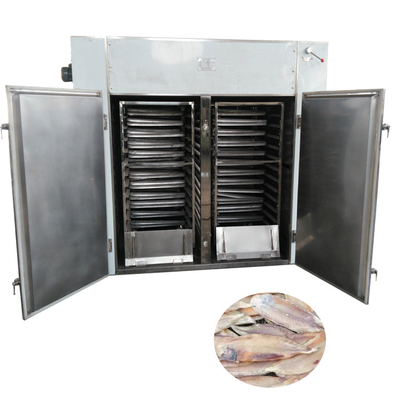

Hot air circulation drying machine

1.General application:
This kind hot air oven(drying machine) is suitable for heat solidifying, drying dehydration of raw material in pharmaceutical, chemical, foodstuff, industry. Such as Chinese traditional medicine, herbal extract, tablet of drink, granules, powder, pigment, dehydrated vegetable, dried fruit ,sea food, flakes, chips so on. Widely used in apple chips, garlic, onion, carrot, ginger, chili,etc.

2. Working principle:
The drying room is heated by cycle hot air. Meantime the wet moisture of raw material will be take away by fans.There are different heating type for different cuatomer, such as electric heating type, steam heating type,etc.

3. Characteristic function:
1) Hot air is circled inside the oven, so ensure a high drying efficiency and energy-saving.
2) It used enhanced ventilation, and euipped with adjustable air distributor, lead to a uniform drying.
3) It’s batch operation, so can adjust process condition anytime. Thus can change product from time to time, so very suitable for
drying high-value product or small-batch product.
4) Feed and dry material in tray, easy for load and unload, without any damage for the raw material, clean conveniently.
5) With low noise and steady operation, and the temperature can be controlled automatically. Total conform with GMP requirement.
6) With a widely applied field, can be suitable for all kinds of raw material.It’s a comprehensive dryer.

Model
Drying capacity
Power
Trolley
Tray
Dimension
CT-C-O
60kg
9kw
1 set
24 pieces
1400*1200*2000mm
CT-C-I
120kg
15kw
2 sets
48 pieces
2300*1200*2000mm
CT-C-II
240kg
30kw
4 sets
96 pieces
2300*2200*2000mm
CT-C-III
360kg
45kw
6 sets
144 pieces
2300*3220*2000mm
CT-C-IV
480kg
60kw
8sets
192 pieces
4450*2200*2000mm
Heating type, machine size, control type, trays quantity and material, trolley quantity and size, etc. All these can be
customized. Any query, please contact us freely.
Details Images
Stainless steel tray
Material: SUS304 Stainless Steel
Size: 640*460*45mm
Holes: 3-10mm
Trolley
Material: Food Grade Stainless Steel
Size: 930*710*1440mm or customized
Layers: 12 or customized

Features

1) Most of the hot air is circulated in the herbs dehydration machine. By using
the forced ventilationfuntion, there are adjustable air distribution inside the oven. The materials can be dried uniformly.
2) Heating source: electricity, steam, far infrared of steam and electricity.
3) Temperature allowed with this fruit vegetable dryer heat 50°C-140°C,the maximum is 150°C.
Electricity heat 50-350°C.
4) automatic control system and computer control system for your choice.

Dried products
