High Quality Hot Circulating Air Tray Oven Dryer Circulating Drying Oven Drying Machine Wholesale Price

1.0 Sets
MOQ
High Quality Hot Circulating Air Tray Oven Dryer Circulating Drying Oven Drying Machine Wholesale Price
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Type: Drying Oven
Application: Medicine Processing, Chemicals Processing, Food Processing
Condition: New
Voltage: Custom
Power: Custom
Dimension(L*W*H): Custom
Key Selling Points: Automatic
Warranty: 1 Year
Weight (KG): 300
Applicable Industries: Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Energy & Mining
Showroom Location: None
Marketing Type: Hot Product 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Pump, Motor, PLC
Material: SUS304
Product name: Hot Air Drying Machine
Function: Dry
Feature: High Efficiency Drying Machine
Temperature range: 50-300℃
Package: Wooden Case
Delivery time: 15-45 Days
Información básica
Pago y Envío Términos
Packaging Details: The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Descripción de producto

Introduction

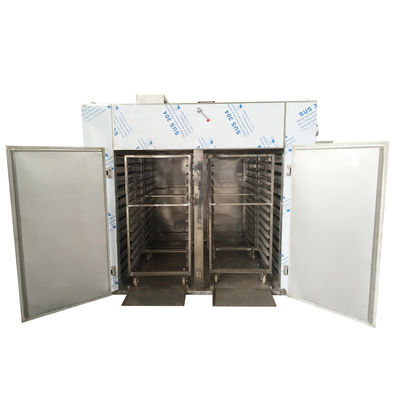

CT-C series hot air circulating Drying oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-40% of the present one. The highest heat efficiency can be up to 50%. The successful design of CT-C hot air circulating oven makes that the hot air circulating drying oven in our country reach the advanced level in the world. It saves energy and increases the economic benefit.

Features

Most hot air is circulated in the oven. The heat efficiency is high and the energy is saved. By using the forced ventilating function, there are adjustable air distribution plates inside the oven, the materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared, with a wide selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and is a versatile drying equipment.

Explanation

1.Options of heat source: steam, electricity, or far infrared, or both steam electricity. 2.Drying temperature: steam heating 50-130˚C, Max.140˚C. 3.Electricity and far infrared:50-300˚C.Automatic control system and computer control system on request. 4.Commonly using steam pressure 0.2-0.8MPa(2-8 bar). 5.For CT-C-I, electric heated, rated power consumption:15kW, real consumption : 5-8kW/h. 6.The special requirements should be indicated at the time of order. 7.For operation temperature of over 140˚C or less than 60˚C, please indicate when order. 8.The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other. 9.Baking plate dimensions:460x640x45mm.

Application

This drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
industry standard Spec. No.
spec.
batch drying capacity
(Kg)
Power
(Kw)
Steam to be consumed (Kg/h)
Heat radiation arer (m2)
velocity
(m3/h)
Temperature between the top and the bottom (°C)
Baking trays (piece)
RXH-5-C
CT-C-0
25
5
5
5
3400
±2
8
RXH-14-
C
CT-C-
IA
50
0.45
10
10
3400
±2
24
RXH-14-
C
CT-C-
I
100
0.45
18
20
3450
±2
48
RXH-27-
C
CT-C-
n
200
0.9
36
40
6900
±2
96
RXH-41-
C
CT-C-
m
300
1.35
54
80
10350
±2
144
RXH-54-
C
CT-C-
IV
400
1.8
72
100
13800
±2
192
RXH-25-A
high efficiency and high temperature far infrared sterilizing oven

01
Stainless Steel Material, One Year Warranty


02
Customized Models Available


03
Smooth Running Effect

1、Q: Is Changzhou Jumei drying equipment Co.,Ltd. a manufacturer , trading company or a third party?

A:We are a manufacturer and our company was foundedin 2013.

2、Q:Where is your factory?

A: Jumei is located in Changzhou City,Jiangsu Prov-ince,China, which is located in the Yangtze River Delta,the economic center of China.

3、Q:How can l get to your factory?

A: You can fly directly to Shanghai Pudong or HongqiaoInternational Airport,and then take the high-speed rail-way to Changzhou station (it's only one hour by train fromShanghai to Changzhou). We arrange to meet you atChangzhou station to our company. Our company isabout 30 kilometers away from Changzhou station.
If you are in China now, you can take a plane to Chang-zhou Benniu airport, or take a train or bus to Changzhoudirectly.
We sincerely welcome you to visit our company at anytime.
