Medicine Curing High Efficiency Industry Hollow Blade Dryer Drying Machine , Hollow Blade Dryer

Brief Introduction

The blade dryer is a kind of low speed stirring dryer with which the wet material is in full contact with the heat carrier and the hot surface under the agitation of the paddle blade, so as to achieve the purpose of drying.

The structure form is generally horizontal. Two or four axes. The slurry blade dryer is divided into hot air type and conductive type.

Product Description

Working Principle:

The blade dryer consists of two or four blade shafts engaged with each other, a W-shaped shell with a jacket, a seat and a transmission part. The whole drying process of the material is carried out in a closed state. Organic volatile gas and odorous gas are sent to tail gas treatment unit in closed atmosphere to avoid environmental pollution.

The dryer uses steam, hot water or heat conducting oil as the heating medium. The heating medium is divided into two ways, which enter the shell jacket of the dryer and the inner cavity of the blade shaft, and heat the body and the blade shaft at the same time. The material is heated and dried by conduction heating.

The dried material is quantitatively and continuously fed into the feeding port of the dryer by the screw feeder, and the material enters behind the dryer. The material is flipped, stirred, continuously updated and heated by the rotation of the blade, and contact with the body and blade of the dryer is fully heated. Vaporize the surface moisture contained in the material.

At the same time, the material rotates with the blade shaft into a spiral trajectory. The discharge direction conveys, continues to stir in the transport, causes the sludge seepage moisture to continue to vaporize. Finally, the dry and even qualified products are discharged from the outlet.

Equipment Features:

1. The equipment has compact structure and small area. According to the structure of the equipment, the heat needed for drying is mainly provided by the hollow blade wall arranged on the hollow shaft, while the heat transfer on the jacket wall is only a small part. Therefore, the unit volume equipment heat transfer surface is large, can save equipment area, reduce capital investment.

2. High utilization rate of heat. The sludge dryer is heated by conduction heating, all heat transfer surfaces are covered by materials, and the heat loss is reduced, and the heat utilization ratio can reach more than 90% without hot air to take the heat away.

3. The wedge blade has the ability of self-cleaning and can improve the heat transfer of the blade. The dispersion force caused by the combined movement of the inclined surface of the rotating blade and the particle or powder layer makes the sludge attached to the heating inclined surface to be removed automatically and the blade maintains an efficient heat transfer function.

4. Due to the reverse rotation of the two shaft blades, the mixing function of alternating compression (at the closest distance between the two shaft blade surfaces) and expansion (at the furthest distance between the two shaft blade surfaces) makes the heat transfer uniform and the heat transfer effect improved.

Advantages of hollow blade dryer drying machine, hollow blade drier:

1. Compact structure: the main heat transfer components of the dryer are shovel-shaped blades, which are dense and intersected on fixed rotating shafts at specified intervals, so the heat transfer per unit volume is relatively high. For this reason, the structure of the equipment is very compact, small area.

2. High heat transfer efficiency: due to good mixing and stirring of raw materials, heating and cooling of the relative rotating blade and sloping blade surface and the body, all surfaces in contact with the product can transfer heat energy uniformly.

3. Self-cleaning performance: because the blade motion is relative rotation, they play a continuous self-cleaning effect on the inner surface nearby. Products that are bonded and stacked on the blades can be removed and re-entered the production process.

4. Simple control: drying process and residence time can be easily checked, controlled and adjusted. They can be individually set and adjusted according to the physical properties of the dried product, and the number of shafts or blades, the rotational speed, the temperature of the heat transfer body and the drying time can be set and adjusted.

5. Less dust and odors: the amount of dust and odors that can be produced is small because the flow of gas used in the drying process is small. As a result, the associated vacuum cleaner or deodorizer is small or not required at all.

6. Suitable for drying of high humidity products: the use of blade drying elements and continuous mixing allows drying of highly viscous, high humidity materials. It is designed to avoid product retention at dead ends and overheating or spoilage caused by product retention.

7. There is little wear and wear: the blade has a low rotational speed of only 1040 revolutions per minute, which effectively avoids abrasion and rapid wear of machine tool equipment caused by abrasion. In addition, the fracture risk of metallic materials is minimized.

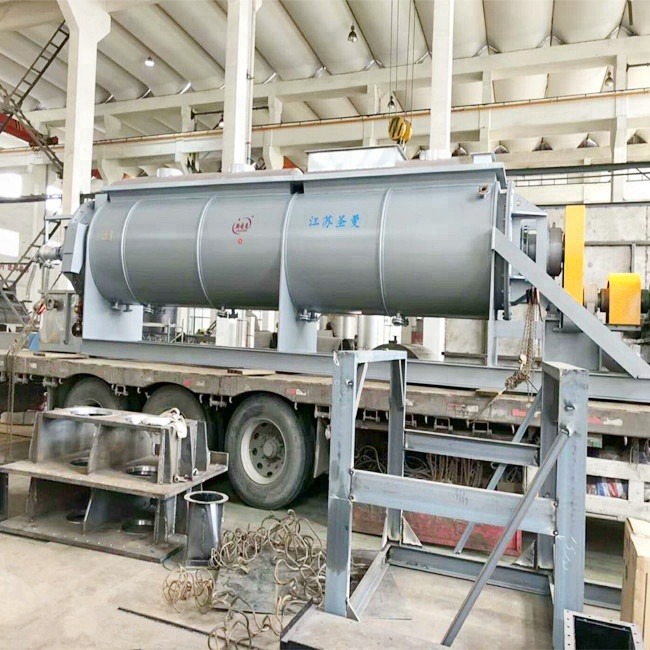

Detailed Images

Packing & Delivery

1. Our hollow blade dryer drying machine, hollow blade drier should been cleanned first, then packaged with the transparent coating, next it will been shipped into the marine container with steel wire fixing.

2. If there is over-size drying machine, we will choose the flat rack container to shipping.

3. The contract takes effect after receiving 30% advance payment; Delivery within 15days after receiving the another 70% of the total value of the product.

4. First by road to Shanghai port or other port as customers' needs, then by sea.

Our Services

Sale service:

In order to fulfill the contract smoothly, establish a good cooperative relationship, here's are several points what we must do.
(1). ensure product with high quality and pre-commissioning before delivery
(2). delivery on time
(3). provide full set of documents as customer’s requirements

After-sale service:
Provide considerate services to minimize customers’ worries.
(1). Assist customers to prepare for the first construction scheme.
(2). Install and debuging the drying equipment.
(3). Train the first-line operators.
(4). Exame the drying equipment.
(5). Take initiative to eliminate the troubles rapidly.
(6). Provide technical support.
(7). Establish long-term and friendly relationship with all my customers.

Service commitment:
We provide customers 12-months warranty to make sure the machine work well, and always keep certain inventory level of spare parts, which means the replacements can be sent to you timely. At the same time, we send every customer a preferential and reasonable quotation.

FAQ

Q: How can i visit your factory?
A: Our company is in Changzhou city, and it is very near Shanghai city. It takes about 1 hour to get to Changzhou. Or we can even visit you in Shanghai.

Q: Are you a factory or a trading company?

A: We are a manufacturer, and have been in the drying industry for more than ten years.

Q: What’s the MOQ of your products?
A: 1 set.

Q: How is the quality of your products?
A: Our products come with best quality, and passed CE certification. And exported to lots countries around the world. You can rest assured with the quality absolutely.

Q: What to do if the drying machine has a problem?
A: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.

Q: Does your price include freight?
A: The price we offer usuallly is FOB Shanghai price. If you request CIF, please give us your delivery port, and even can offer the EXW price (the machine cost) for you.

Q: What is the payment term you prefer?
A: Our usual payment term is T/T. 30% T/T in advance, another 70% T/T before shipment. Other ways can also be received after we discussion and agreement, like L/C.

Q: Which kind of payment you accept?

A: Common is after 30% of the advance payment is received, the contract becomes effective (20% of which is the deposit); The production cycle depends on the actual situation; Delivery to Shanghai port within 15 days after the another 70% payment is received.

In order to quote you the most suitable drying machine with the best price, we'd like to receive the following pieces of informations first:

1. Name, size & state of drying material

2. Primary moisture & Final moisture (%)

3. Max drying temperature (℃)

4. Finished products' capacity per hour (KG/H)

5. Heating source (like natural gas, electricity, fuel oil or steam)

6. Electricity information in the using field (Voltage, Hertz, Phase)

7. Steel material of drying machine

8. Other special drying requirements
