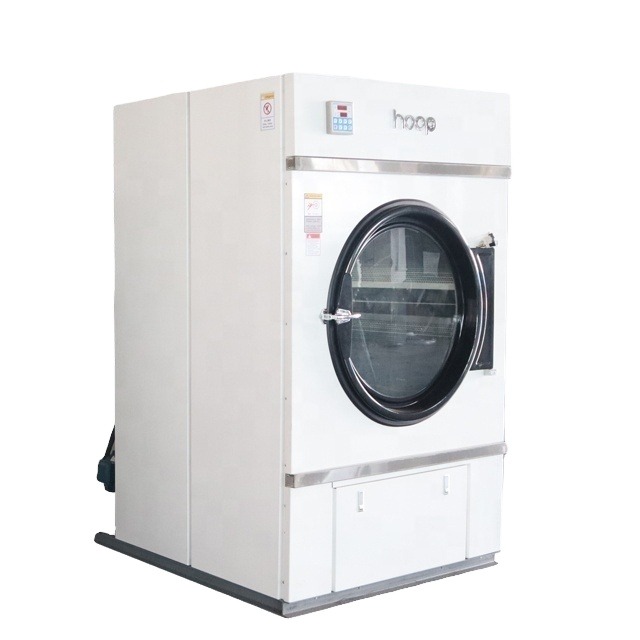

Commercial Laundry Equipment Electric Laundry Center Circle Clothes Tumble Dryer Dryers

1.0 Sets
MOQ
Commercial Laundry Equipment Electric Laundry Center Circle Clothes Tumble Dryer Dryers
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 1 Year
After-sales Service Provided: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Power: 0.55 to 2.2
Weight: Varies with the capacity
Size: Varies with the capacity
Description: Full Automatic Efficient Electric Steam Gas Reverse Drum Tumble Dryer
Function: Efficient Drying
Capacity: 10/15/20/25/30/50/70/100/120/150kg
Power Supply: 110/220/380/415v
Control: Full Automatic
Heating: Electric/Steam/Gas
Used for: Commerial Laundry Center
Material: SUS304
Certificación: CE
Installation: Free-standing
Información básica
Certificación: CE
Pago y Envío Términos
Packaging Details: Woodcase Packing for Sea Shipping
Supply Ability: 300 Set/Sets per Month
Descripción de producto
HG SERIES INDUSTRIAL DRYING MACHINE
*HG series computer controlled dryer,automatically set temperature and operation time.Drying quickly and efficiently,stainless steel inner drum,reliable and durable;
*Adoptiong secondary traingle belt deceleration drive,low noise,small vibration,long working life,convenient maintenance;
*The fan adopts the large spacing impeller blade,not easy to block plush.
Tumble Drying Machine
Hoop has developed a series of this drying machine,totally 18 models out of 4 machine sizes,from the minimum 15kg to maximum 150kg.
Model
HG-20/20D
HG-30/30D
HG-50/50D
HG-70/70D
     HG-100/100D
     HG-120/120D
Capacity
kg
20
30
50
70
100
120
Drum size
mm
Ø890X700
Ø980X840
Ø1070X1000
Ø1200X1000
Ø1500X1100
Ø1480X1200
Drying time
min
40-60
Motor power
kw
0.75
1.1
1.1
1.5
2.2
2.2
Fan power
kw
0.55
0.75
1.1
1.5
1.5X2
1.5X2
Heating power
kw
18
24
40
58
70
85
Steam pressure
Mpa
0.4-0.6
Steam consumption
kg/h
40-45
60-70
90-100
130-140
180-200
220-240
Gas consumption
m3/h
2.5
3
5
7
10
12
Dimension
m
1*1.2*1.8
1.1*1.3*2
1.25*1.6*2
1.4*1.7*2.2
1.7*2*2.5
1.7*2*2.6
Weight
kg
340
385
550
600
1000
1200
Note:The above specifications are subject to change without notice.
The dryer is designed with electric heating;steam heating and gas heating all available;If you want to know the difference betwwen them,please contact with the saler,who will teach you how to choose.
Electric heating:
With a electric heater on the top of the dryer.
Steam heating:
With a radiator on the top of the dryer.
Gas heating:
With a gas heater on the top of the dryer.
The heat exchanger adopted is of a high power,its stainless steel structure,assures good anti-corrosion performance and mechanical strength.

10kg-70kg Drying Machine

The capacity from 10kg to 70kg has one of main motor and one of fan motor.

100kg-150kg Dring Machine

The capacity from 100kg to 150kg has one of main motor and two of fan motors.
Every piece of metal part of the dryer is treated through acidizing,and phosphating process to assure tightness of surface painting,which can guatantee not only exquisite appearance,but also longer service life of the dryer;
The dryer jacket is fully insulated for maximum heat reteneion,as well as low noise.
The drum will tumble clockwise and anticlockwise during drying cycle,which can do benefit to fast heat exchange and avoid any tangling,then improve drying effect in consequence.
Door Interlock System



When the door opening during working,the machine will be shut down automatically.Also with emergency stop buttom,with door interlock system,while machine still working and opening the door,the machine will be stop automatically.
Computer Control, Easy Operate

Advanced computer control LCD screen,5  programmable,operate with different temperature time and rotating direction per during requirements for different linen endure good performance.
*Manual operate available during drying,easy operate;
*While finished the drying,cooling system ensure the better drying result by press time, temperature.
Cooling Down System
While finished the drying,the cooling down system will be turn into cold wind,the cold wind will be come into drum,cooling down the linen in short time.Prevent channeling temperature;
The air outlet is arc shaped to prevent exhaust air from flowing back,easy for hot air diffusion.
About the delivery time after ordering
We mass produce machines to ensure quality and increase output more effectively.
If we have the machine in stock,only need 2-3 days for testing,then will arrange the delivery to the custumer;
If there is no machines in stock,10 -12 days will be finished.
