Inicio /Productos/Secador de carga delantero/Factory Grain Stainless Steel Dryer

Factory Grain Stainless Steel Dryer

1 Set
MOQ
$5,000.00(1 - 1 Sets) $4,500.00(>=2 Sets)
Precio
Factory Grain Stainless Steel Dryer
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Automatic Grade: Automatic
Type: dryer
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Motor
Voltage: NA
Power: NA
Dimension(L*W*H): NA
Weight: NA
Warranty: 1 Year
Key Selling Points: High Productivity
Applicable Industries: Manufacturing Plant, Food & Beverage Factory
Showroom Location: None
After-sales Service Provided: Video technical support, Online support
After Warranty Service: Video technical support, Online support
Local Service Location: None
Certificación: ISO
Información básica
Certificación: ISO
Pago y Envío Términos
Packaging Details: Adopt steel frame/plywood/frame/seal boxes to fasten each main component, avoiding movable damage via transportation, and make it easier for clients to unload the cargo
Supply Ability: 1500 Set/Sets per Year
Descripción de producto
Product Overview

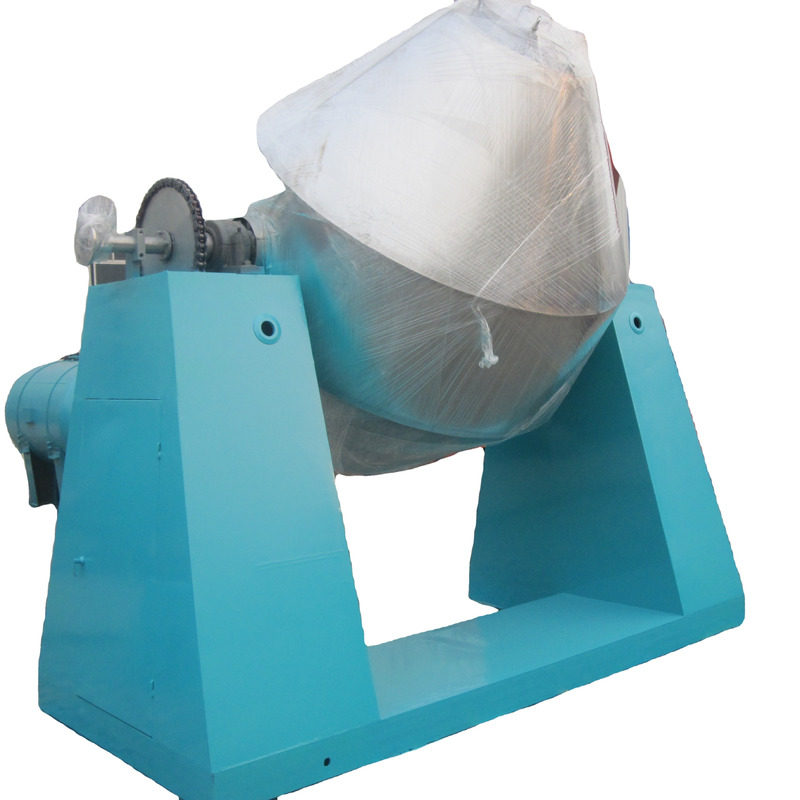

Double cone rotary vacuum dryer

The double cone rotary vacuum dryer is a new type of dryer integrating drying. The condenser, vacuum pump and dryer are matched to form a vacuum drying device. It can be widely used in the drying of materials in the pharmaceutical, chemical, food, fuel and other industries
FEATURES AT A GLANCE
1. Simple internal structure, easy to clean, all materials can be discharged
2. Because the material rotates when the container itself rotates, but there is no accumulation on the wall of the container, the heat transfer coefficient is high and the drying rate is high
Quick open discharge hole
Rotary joint, 360°rotation
Stainless steel material, GMP standard
PRODUCT SPECIFICATIONS
Working principle:
1. The tank is in a vacuum state, heat conduction oil or hot water is passed into the jacket for heating.
2. The heat contacts the wet material through the inner wall of the tank. The vapor or other gas evaporated after the wet material absorbs heat is pumped away through the vacuum exhaust pipe by the vacuum pump.
3. The tank body is in a vacuum state, and the rotation of the tank body makes the material constantly move up and down, inside and out, so the drying speed of the material is accelerated, the drying rate is increased, and the purpose of uniform drying is achieved.
Capacity, L
100
Loading capacity, L
≤50
Heating area, m³
1.16
Speed, rpm
4~6
Motor power, KW
0.75
Dimension, length*width, mm
2160*800
Rotation height, mm
1750
Design pressure of the inner tank, MPa
-0.1~0.15
Design pressure of the jacket， MPa
≤0.3
Design temperature, ℃
inner tank≤85， jacket≤140
SALES AND SERVICE NETWORK
Successful Project
Project in Russia
Project in India
Project in Thailand
FAQ
Q: Are you trading company or manufacturer ?
A: Tanglian is a professional manufacturer.
Q: How could we confirm the details of the products?
A: Tanglian have technical department, accurate drawing will be provided to you to confirm.
Q:What's your delivery time ?
A:Generally it is 35-45 days after received the deposit and confirmed the drawing.
Q: Will you charge us for drafting if we have special requests?
A: No, we will not. Free of charge to make a draft or offer.
Q:How long the warranty will be?
A: 1 year warranty.
Q:How about the installation?
A: Before shipment, equipment will be installed and debugged by our installers. After arrived, online support will be provided.
