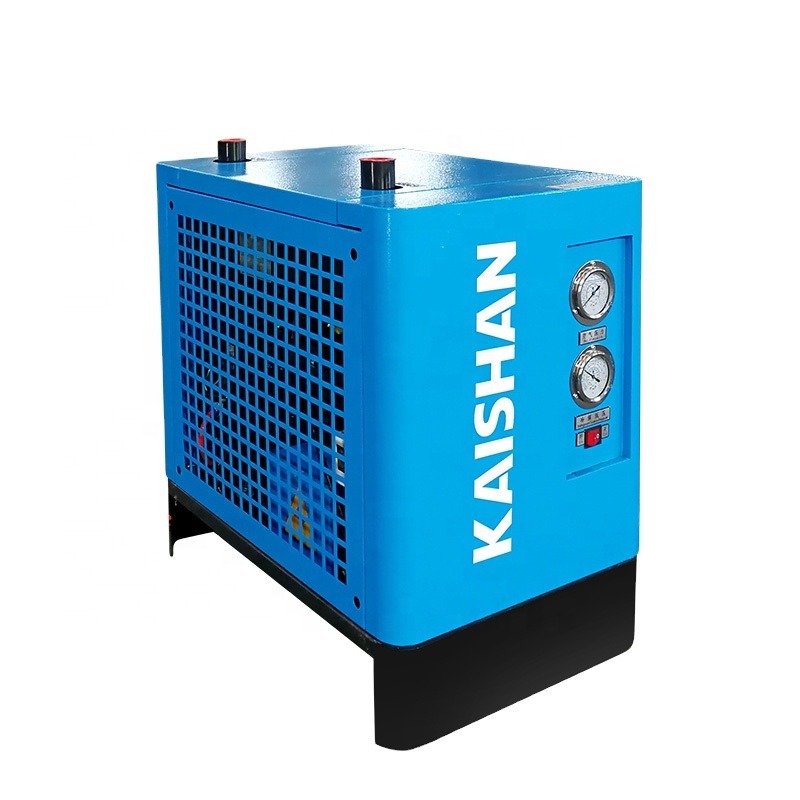

Hot Selling Qilless Kaishan Refrigerated Compressed Air Dryer Compressor With Dryer

In pneumatic systems, compressors draw in ambient air that always contains some amount of water vapor. The process of compressing air to around 100 psi raises the air’s temperature, but also dew point and water-holding capacity. Any subsequent cooling downstream will likely cause some water vapor to condense. Liquid water in pneumatic systems creates problems such as corrosion and bacteria growth, which, in turn, leads to sluggish controls or component breakdowns. Thus, air dryers are often needed to mitigate water issues.

1.Our dryers have multiple design features to ensure a constant dew point at all load levels and provide continuous dry air performance that meets the ISO7183 and CAGI ADF100 industry standards while reducing energy consumption and increasing reliability.

2.Corrosion-resistant heat exchangers reduce air flow restrictions, providing more efficient throughput with less wasted energy. A built-in stainless steel demister efficiently removes all moisture.

3.Microprocessor control with an easy-to-use graphic interface lets you adjust and manage system parameters easily and efficiently.

4.Reliable, fully hermetic compressors use environmentally friendly refrigerant.

5.A fully adjustable programmable electronic drain valve helps minimize air loss.

Air receiver tanks are essential to compressed air systems, as they allow the system to perform efficiently. They also serve as temporary storage. The tanks enable you to use air when the compressor is not running. Apart from this, they also supply additional air to the system during periods of high usage.

The advantages of Kaishan gas storage tanks are:

The gas storage tank is particularly strong and durable due to the huge pressure it bears.

The air storage tank can save the trouble of opening the compressor system with only a few seconds of air. This reduces the cost of using a compressor. Electrical use and maintenance costs have also been reduced. Then, as the amount of use increases, air can be stored.

The pressure change is balanced by the start / stop switch, and the sequence of the compressor can be adjusted.

4. The condensate can be removed from the stored air, which adds more moisture to the air system. The drain trap is equipped with a drain pipe. This helps remove water from the air system and provides better gas to the rear equipment.

One method to estimate the receiver size is this formula:

V = (Q x Pa) / (P1 + Pa)

Where:

V = receiver size in cubed feet

Q = compressor output in cfm

Pa = standard atmospheric pressure in psia

P1 = compressed pressure in psig

As an authorized distributor of Kaishan, we offer some of the highest quality ring-coated storage tanks on the market today. We have gas tanks that can meet any need. If you are not sure which size is right for you, our plant's system experts will advise you and help you determine the gas tanks you need.
